cloud

High-Intelligibility Premium Loudspeakers


On Point Audio is a vibrant, fast growing brand of One Systems, Inc. On Point Audio was developed to use the company's design engineering and manufacturing expertise to provide customers with a unique range of non-weatherproof speakers that provide extraordinarily high value for installations and other applications. The same engineering team that designed One Systems products, developed On Point Audio speaker systems..



In On Point Audio products, you'll find premium loudspeaker components that include pure titanium compression drivers and large-format woofers. To meet customer demands for high output from small enclosures, On Point Audio developed Narrow-Profile™ woofers. These woofers combine standard-sized cones with rectangular frames, and a unique rolling-style surround that enables significant reductions in the size of the drivers and enclosures.



All On Point Audio systems feature very high quality enclosure designs, and are built to provide years of outstanding performance. On Point Audio enclosures are heavily reinforced to ensure freedom from unwanted resonances, as well as providing safety and flexibility for installations.



On Point Audio models that include built in amplifiers and digital signal processing use premium, European-designed electronics. Their class D circuits are electrically efficient and have well designed topology that maximizes headroom and keeps distortion low.





WHAT'S NEW






OPA-5T


OPA-5T



The On Point Audio OPA-5T is a 5.25-inch two-way coaxial system with a small-format compression driver designed for Installation applications. The OPA-5T's point-source coaxial design eliminates horn coloration and time smearing caused by sound emanation from multiple sources to deliver pure audio performance. For added flexibility, OPA-5T can be configured for low impedance use with 125 watts continuous, 500 watts peak power handling at 8 ohms, or tapped at 50 watt, 25 watt and 12.5 watt from 70.7 – 100 volt lines. The OPA-5T is an excellent solution for applications that require premium audio quality from a small form factor..



[More Info]









OPA-8-NP


OPA-8-NP



The On Point Audio OPA-8-NP is an ultra-miniature sized, high-performance 8-inch (203 mm) two-way loudspeaker system featuring an 8-inch woofer and a coaxially-mounted-1.35-inch titanium compression driver. The OPA-8-NP features a 90-degree conical coverage pattern making it perfect for near field and medium-range applications.



The OPA-8-NP delivers excellent fidelity with superior vocal reproduction and intelligibility. The OPA-8-NP's small size, high output capability, sturdy construction and mounting flexibility make it a unique audio problem-solver.



[More Info]

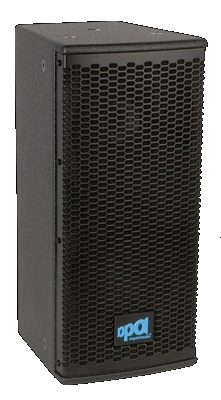

OPA-28-NP



OPA-28-NP



The OPA-28 NP is an ultra-miniature sized, dual 8-inch two-way vertical array system featuring a 1.35-inch coaxially-mounted compression driver. The OPA-28 NP has excellent sensitivity and 400 watts continuous, 1,600 watt peak power handling that can cover large areas from a shoebox-sized enclosure. Its small size, only 183 mm / 7.2 in wide, is made possible by On Point Audio's unique Narrow-ProfileTM woofer technology and coaxial design. The OPA-28 NP's applications include distributed audio, front / side fills, under balconies and combined with subwoofers for live sound.



[More Info]

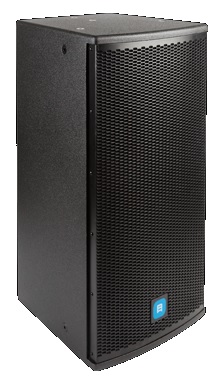

OPA-12






OPA-12



The OPA-12 is a 12-inch (305 mm) two-way system featuring large-format components designed and built by On Point Audio. The OPA-12 has a rotatable High-Q 60 x 40 "horn with holes" that provides impressive projection, superb pattern control and a "bigger than the box" sound quality. For applications that need wider coverage, a rotatable 90 x 40 degree horn is available with order. The sound of the OPA-12 is extraordinarily smooth and its wide bandwidth response and intelligibility invites comparison to the most expensive 12-inch systems available. Its enclosure adds to its flexibility with multiple M10 suspension points that permit it to be flown horizontally or vertically.



[More Info]

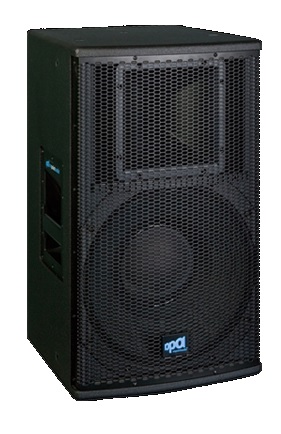

OPA-15-YNP




OPA-15-YNP



The OPA-15-YNP is a compact, high-performance 15-inch two-way system that's about the same size as many 12-inch systems - only 373 mm / 14.7 inches wide. Its small size, made possible by On Point Audio's Narrow-ProfileTM driver design, doesn't compromise performance. Its 15-inch woofer equipped with a 4-inch voice coil delivers smooth, solid lows. Its compression driver delivers maximum vocal intelligibility and superb definition. The wide-dispersion, 90 x 75 degree rotatable horn and multiple M10 suspension points permit the enclosure to be suspended horizontally or vertically. The OPA-15-YNP's rugged 13-ply birch plywood enclosure is covered in attractive, wear resistant PowerCoatTM finish and is also equipped with a pole mount socket for installation and use flexibility.



[More Info]

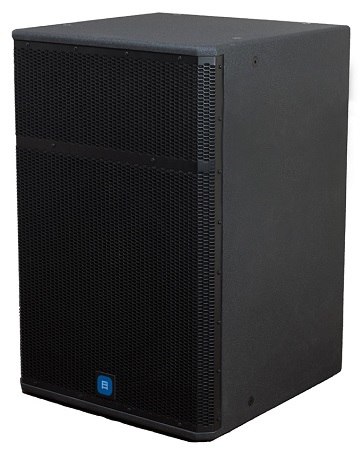

OPA-181SP





OPA-181SP



On Point Audio's OPA-181SP is a high output, high performance 18-inch subwoofer that delivers the perfect combination of deep bass response, high output capability and installation flexibility. The OPA-181SP is equipped with a high performance 18-inch woofer with a large-format 4-inch (101 mm) voice coil built by On Point Audio. The OPA-181SP provides 800 watts continuous, 3,200 watts peak power handling and delivers 127 dB continuous, 133 dB peak output and has usable low-end response to 30 Hz. The enclosure is made of 13-ply birch plywood, finished in On Point Audio's rugged PowerCoatTM finish and is equipped with heavily reinforced M10 suspension points. The OPA-181SP is more compact than typical 18-inch subwoofers, enabling it to be less conspicuous when installed, whether ground-stacked or flown.



[More Info]

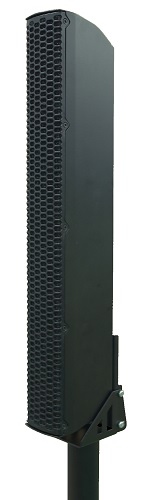

OPALine-82





OPALINE-82



The OPALine-82 is a passive eight-element vertical array column featuring close-spaced, 2-inch full range transducers built by On Point Audio. Thanks to its large-sized voice coils and clever design, the OPALine-82 provides the highest output capability in its class. The OPALine-82 provides wide 120-degree horizontal and progressively directive, 10-degree minimum vertical coverage. The OPALine-82's enclosure is made of steel equipped with a heavy gauge steel grille to protect its drivers and is available in black and white finishes. The OPALine-82 can be used as a vocal reinforcement system for distributed applications, as a background music system or to provide audio for video monitors, among many other uses. The OPALine-82 can also be combined with the On Point Audio OPA-151SA dual-powered, DSP controlled subwoofer to create a wide bandwidth, high output, yet nearly inconspicuous powered system for live sound, installations or corporate events.



[More Info]

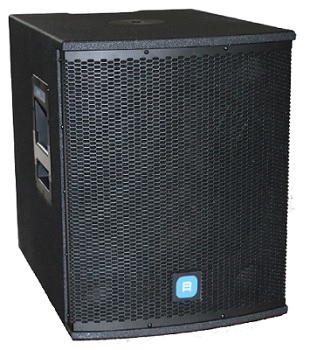

OPA-151SA




OPA-151SA



The OPA-151SA is a powered 15-inch subwoofer that combines a powerful On Point Audio driver, two 1,000-watt peak power amplifiers and flexible user-adjustable DSP into a premium enclosure. Its two amplifiers provide power for the subwoofer as well as for On Point Audio full-range models. The OPA-151SA features user-adjustable DSP control via RS-485 and also includes OPA-Net software for precise system tuning and monitoring. The OPA-151SA is equipped with factory presets for the OPALine-82 and other On Point Audio models plus three user memory slots for various setups or different program material. Powerful, yet compact, the OPA-151SA delivers an incredible assortment of features.



[More Info]

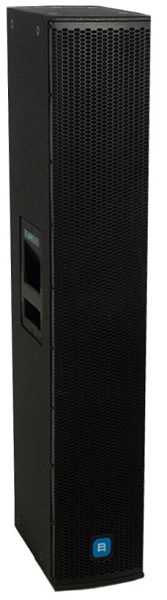

OPALine




OPALINE



On Point Audio's OPALine is a single-box, six-element vertical line array system designed for permanent installation and live sound reinforcement applications. OPALine combines 4 x 8-inch woofers, two medium-format compression drivers and two isophasic line array waveguides to provide a wide 90-degree horizontal coverage and precise 40-degree vertical coverage. OPALine's coverage is wide, but is well controlled enough to avoid bouncing sound from adjacent walls and to keep vocals off the floor thereby improving intelligibility and definition. The OPALine can be used as a full-range speaker (80 - 20,000 Hz +/- 3 dB) or combined with the OPALine Sub to create a powered, three-way full-range system.



[More Info]

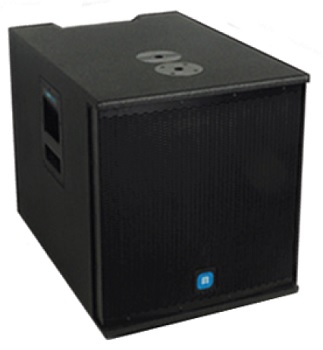

OPALine Sub




OPALINE SUB



The OPALine Sub is a powered 18-inch subwoofer with DSP and two onboard amplifiers - one that powers itself and one to power the OPALine or other passive speakers. The OPALine Sub has an 18-inch woofer with a 4-inch voice coil that provides solid low end to 30 Hz. Its second amplifier is high-passed at 120 Hz that prevents small-diameter drivers from over-excursion. The OPALine Sub is tuned to precisely match the OPALine vertical array system. It is equipped with dual pole mount sockets and includes two poles to create a high-performance, powered ground-stacked line array system that provides exceptional intelligibility as well as solid, deep bass. For house of worship, theater and live sound venues, the OPALine Sub provides system power and high output bass in a compact package.



[More Info]
