PureStream

What is PureStream ?


PureLink's PureStream digital signage content management systems offer fully integrated network media playback device and intuitive software to create and distribute dynamic content for a variety of applications.



PureLink's PureStream IP video distribution systems enables enable the easy setup and configuration of traditional A/V over TCP/IP local and wide area networks. These solutions also pair server based control software applications with proven hardware components to make for a simple and intuitive end user experience.

Working as individual solutions or cooperatively in an efficient content distribution system, the PureStream MPX and VIP systems offer software/hardware bundles that drive digital signage for a multitude of applications in business, education, retail, and government, to name a few.



[More Info]







MPX






MPX50

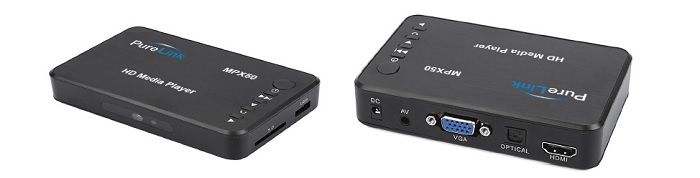

PureStream MPX50 - HD Media Player



The PureStream MPX50 offers a simple and effective solution for media playback without the need for programming or software management. This plug-and-play device plays media files from USB or SD card storage, allowing users to load images, videos, and audio content onto a USB or SD memory device drive and connect it directly to the box. With its compact, rugged design and reliable performance, the MPX50 provides a trouble-free and cost-effective system.



Key Features :



• Compact media player connects to HD displays to provide dynamic digital signage presentations.

• Can be used as an audio source for waiting rooms, on-hold music, and more.

• Plug-and-Play - load photos, videos, and audio onto a USB device or SD card.

• Supports resolutions up to 1080p with HDMI and VGA output.

• Remote control provides effortless navigation.

• Customizable presentations:

- Duration of each slide: 1, 3, 5 & 10 seconds

-Transitions in-between: Persian Blinds Vertical, Persian Blinds Horizontal, Mosaic & Random



[More Info]








MPX100-II

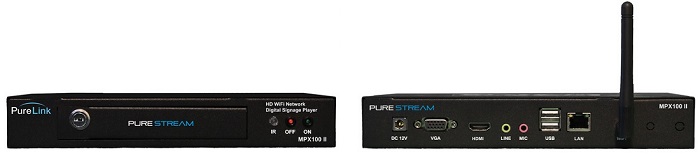

PureStream MPX-100 II - HD WiFi Network Digital Signage Player



The PureStream MPX100 II high definition media player offers powerful features including a 1.6 GHz Quad-core processor, built-in WiFi, and securable content storage. Together with the MPX Management Software Suite, the MPX 100 II provides a complete digital signage solution for applications such as retail, restaurants, hotel lobbies, airport information, public transportation, and more.  Export playlist content via the built-in WiFI, LAN, or USB options for a self-sufficient, Android-based media playback solution. The MPX100 II offers 1GB of built-in flash memory, as well as a securable (key-lock) SD card slot allowing expansion of up to 128GB for local content storage. The unique fan-less design eliminates noise and protects against debris, providing low-power operation and maximum reliability.



Key Features :

(MPX100 II HD Network Digital Signage Player)



• Supports landscape and portrait displays up to 1080p (Full HD).

• Supports a wide range of media formats - the most in its class.

• Touchscreen and mouse support for interactive content designs.

• Solid state hardware - Android OS.

• 1.6 Ghz Quad-core processor.

• WiFi and Ethernet support

• HDMI, VGA, and stereo audio outputs

• Includes 16GB SD card (supports up to 128GB SD)

•  Front panel key-lock for securable content storage

• Multi-zone display

• Non PC-based, plug-and-play



Key Features :

(MPX Management Software)



• Included with the MPX100 II media player.

• Comprehensive content and player management with groupings.

• Content creation and layout tools.

• Flexible playlist scheduling.

• Capture live screenshots from any player in a system.

• Assign user roles.

• Complete system diagnostics and status view.

• Powerful connectivity - send, manage, and monitor content of multiple players



[More Info]

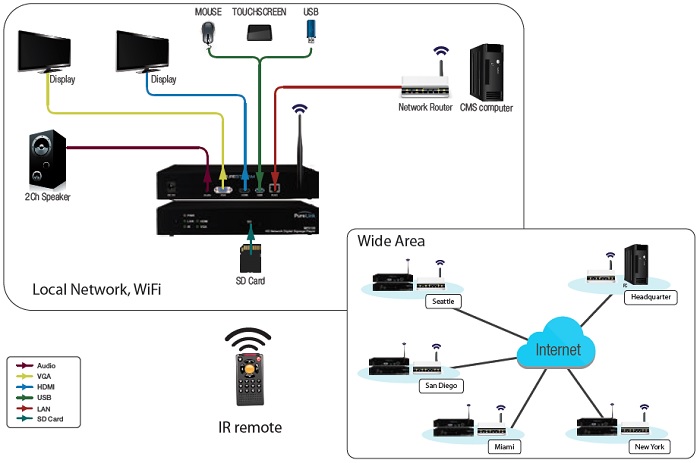

Diagram







VIP


PureStream™ VIP Series IP Video Distribution Solutions enable the easy setup and configuration of traditional A/V over TCP/IP local and wide area networks. The VIP Series combines proven hardware components with a server-based control software application to provide a simple and intuitive user experience.

PureLink understands that the implementation of traditional A/V has added complexity when merged with IT. PureStream VIP solutions address these issues by combining reliable hardware with simplified setup, discovery, and operation.

The VIP-200 combined with the revolutionary VIP IP Video Management Software offers multi-format hardware options and an intuitive web based UI application, delivering a powerful and easy to install IP Video distribution management system:



   •   Simplified setup

   •   Network discovery

   •   Device management

   •   Create and schedule presets

   •   Work with 3rd party control automation API

   •   Event log management











VIP-100-II

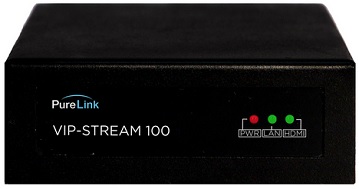

VIP-STREAM-100 - HDMI Streaming Encoder - Full HD



PureLink understands that the implementation of traditional A/V has added complexity when merged with IT. PureStream VIP solutions address these issues by combining reliable hardware with simplified setup, discovery, and operation.



The VIP-STREAM-100 Full HD HDMI Encoder System provides Full HD (1080p@60Hz) video and audio distribution over IP networks using the H.264 video compression standard. The VIP-STREAM-100  can be used to extend signals up to 330 ft. (100 m) from a network switch and distribute A/V sources to any software based decoder on the network.  Featuring convenient setup options for configuring H.264 stream settings, the VIP-STREAM100 brings to market the only H.264 system that offers reliable signal transmission across CAT networks.

The H.264 codec can be decoded with any H.264 compliant software program such as VLC.



Key Features :



• Extend/distribute up to Full HD 1080p@60Hz video

• Industry standard H.264 codec for low-bandwidth AV over IP

• Decode using H.264 compliant software such as VLC

• Built-in webpage for easy configuration and setup

• View complete diagnostics on front panel LED display

• Supports UDP, HTTP, RTSP, RTMP, ONVIF protocol

• Supports MPEG1 Audio Layer 2
• CBR/VBR network bit-rate control (16Kbps~16Mbps)

- HDCP v1.3 compliant



[More Info]









VIP-100-II

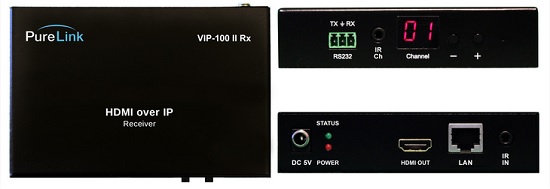

PureStream VIP-100 II Tx/Rx - HDMI over IP with PoE



The PureStream™ VIP -100 II HDMI over IP distribution system provides video, audio, RS-232, and IR extension, distribution and matrix switching capabilities. Transmitter (encoder) and receiver (decoder) modules can be connected together for point-to-point extension over distances up to 394 ft. (120 m), as well as a point-to-many, many to point, and matrix connections providing up to a 64x190 matrix switching system, or even a 64 x 65K system based on Class B networks..



Key Features :



• Support resolutions up to Full HD/1080p

• Front panel channel plus/minus buttons

• IR remote control for familiar channel selection

• PoE (Power over Ethernet) – power encoders/decoders from 802.3af PoE network switches

• RS232 & IR extension/distribution

• HDMI Loop out on Transmitter

• HDCP compliant
• Point-to-point or matrix system:

- up to 64 x 190 matrix (hardware) on Class C networks

- up to 64x 65K on Class B networks



[More Info]








VIP-200

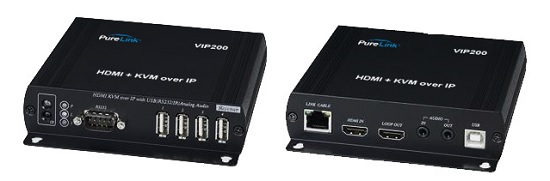

PureStream VIP-200 Tx/Rx - HDMI & USB/KVM over IP



The PureStream™ VIP -200 Series HDMI & USB/KVM over IP Extension System allows users to add video, audio, RS-232, IR, and USB distribution and matrix switching capabilities to IP networks. Local and remote units can be connected together for point-to-point extension over distances up to 590 ft (180 meters)., as well as a point-to-many, many to point, and matrix connectivity using the VIP IP Video Management Software.



The PureStream VIP (Video over IP) product line offers feature-rich, easy to operate solutions to manage the distribution of audio, video, and more over standard IP networks. PureLink understands that the implementation of traditional A/V has added complexity when merged with IT. PureStream VIP solutions address these issues by combining reliable hardware with simplified setup, discovery, and operation.



Key Features :



• Ultra-low latency

• High Quality proprietary codec

• USB 2.0 (KVM)

• RS232 and IR

• Handheld remote control for 'channel' like switching

• VPX IP Video Management Software with browser interface

• HDCP compliance

• HDMI, DVI, and VGA transmitter and receiver options

• Four products in one:

- Point to Point : 590ft KVM extender
- Distribution : One TX to 154+ RX
- Switching : up to 100 TX to One RX
- Matrix : up to 100 TX to 154+ RX



[More Info]

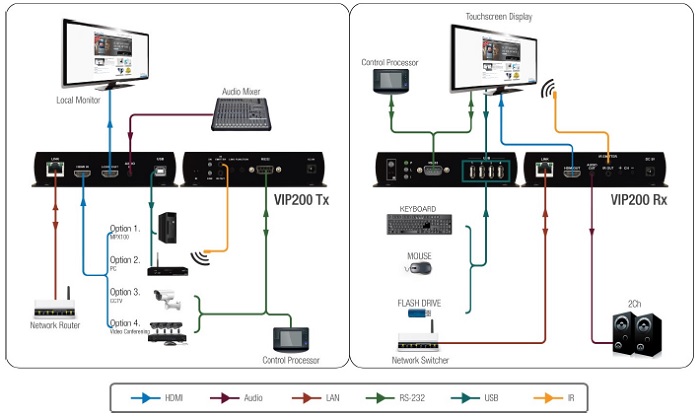

VIP200Diag








VIP-200

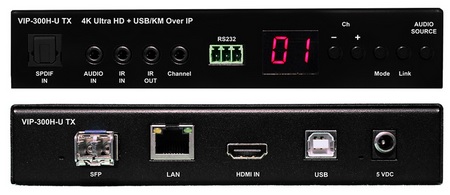

PureStream VIP-300 II Tx/Rx - UltraHD 4K HDMI & USB/KM over IP with PoE



The VIP-300H-U UltraHD 4K HDMI & USB/KM Over IP Distribution System provides UltraHD/4K video, audio, RS-232, IR, and USB distribution and matrix switching capabilities over IP networks. The VIP300H-U can be used as a point-to-point extension system supporting distances up to 390 feet (120 meters), as well as multi-signal distribution, switching, and matrix switching system using the VPX IP Video Management Software. The VIP300H-U brings to market the only IP Video system that offers reliable signal transmission across CAT or Fiber networks. The VIP-300H-U also features convenient setup functions allowing users to easily configure video wall displays up to an 8x8 configuration.



The VIP-300H-U supports embedded HDMI, analog, and SPDIF audio and can be powered from 802.3af or higher compliant network switches. The PureStream VIP (Video over IP) product line offers feature-rich, easy to operate solutions to manage the distribution of audio, video, and more over standard IP networks. PureLink understands that the implementation of traditional A/V has added complexity when merged with IT. PureStream VIP solutions address these issues by combining reliable hardware with simplified setup, discovery, and operation.



Key Features :



• Supports 4K30 4:4:4 and 4K60 4:2:0 (converted to 4K30)

• HDCP 2.2 compliant

• Powered via 802.3af PoE

• Near Zero Latency (1 mS)

• High Quality proprietary PureStreamX Ultra codec

• CAT connections standard

• Fiber SFP+ slot for optional modules

• Built-in video wall function (up to 8x8 configuration)

• Create any combination of display areas across a videowall

• USB 2.0 (KM)

• idirectional RS232 and IR

• Infrared remote control channel selection

• LED channel display

• Digital and analog audio insertion

• Compatible with VPX IP Video Management Software with browser interface

• Four products in one:

- Point to Point : 390ft KM extender
- Distribution : One TX to 65k RX
- Switching : 256 TX to One RX
- Matrix : up to 256 TX to 65K Total TX/RX



[More Info]



VIP200Diag
