Erikson Commercial: Quest Commercial Loudspeakers

The Quest Commercial line-up features some of the most stringent design philosophies ever adopted for a commercial speaker specifically designed for accessibility by all those who favour great looks, great sound and great value.

Qust Commercial offers a wide variety of in-ceiling, surface-mount, and paging horns

Back to Quest Commercial Home Page

Our In-Ceiling Speakers Line-up:

In-Ceiling Speakers, 70/100 Volt transformer, High Style Grille with ABS Back Box.

Ideal for audio and Video conferencing, also used in Restaurants, Boardrooms, Conference Rooms, Retail Stores, Malls, Airports, and anywhere a commercial background or foreground Music or Paging is required. Designed for quick and easy mounting makes it ideal for all ceiling type installations in new and existing constructions. Speaker system comes completely assembled.

QCS-65TX

MGCS6TW

6.5" Coaxial Speaker, 70.7/100V/ 8 Ohms selectable, Power: 30W (70.7/100V) – 80W RMS (8 ohms)

Back Box Material : ABS - CE Approved - Optional Tile Bridge available: T6B

[Spec Sheet]

MGCS8TW

8" Coaxial Speaker, 70.7/100V/ 8 Ohms selectable, Power: 40W (70.7/100V) – 100W RMS (8 ohms)

Back Box Material : ABS - CE Approved - Optional Tile Bridge available: T8B

[Spec Sheet]

Our In-Ceiling Open-Back Speakers Line-up:

In-Ceiling Speakers, 70/100 Volt transformer, High Style Grille without Back Box.

Ideal for audio and Video conferencing, also used in Retail Stores, Boardrooms, Conference Rooms, Restaurants, Malls, and anywhere a commercial background or foreground Music or Paging is required. Designed for quick and easy mounting makes it ideal for all ceiling type installations in new and existing constructions. Speaker system comes completely assembled.

QCS-65TX

QCS-65TX

6.5" Coaxial Speaker, 70/25 Volt transformer, High Style Grille.

[Spec Sheet]

QCS-810CXBT-WG

8" Coaxial Speaker, 70/25 Volt transformer, High Style Grille.

[Spec Sheet]

Our Pendant Speakers:

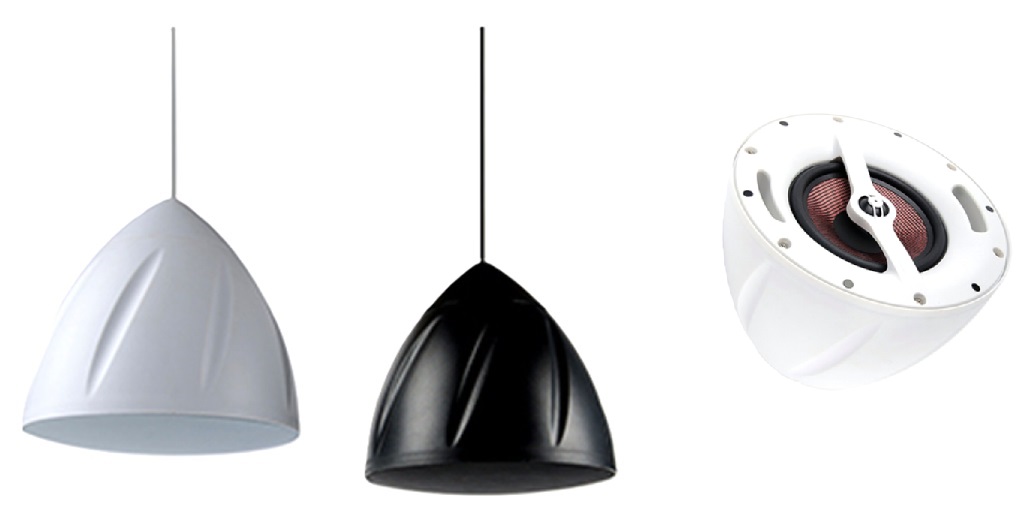

6.5" 2-Way Coaxial Pendant Speaker

For use in Warehouse, Factories, Train Station, Airport, Parks, Golf Course, Restaurant Patios, Amusement Parks, Zoos and anywhere a commercial background or foreground music or paging is required. Weather Resistant construction makes these cabinets ideal for indoor or outdoor use under eaves and in semi-enclosed space.

PS-65

PS-65B (Black) / PS-65W (White)

6.5" 2-Way Coaxial Pendant Speaker

70V / 100V / 8 ohms

[Spec Sheet]

Our Surface-Mount Indoor Speakers:

Surface-Mount Indoor Speakers, 70/100 Volt transformer, with 8 ohms bypass.

For use in Restaurants, Bars, Churches, Auditoriums, Boardrooms, Nightclubs, Retail Stores, Airports, Factories and anywhere a commercial background or foreground music or paging is required.

SB400T

Dual 4" Surface Mounting 2 way speaker - Black

Attractive elliptical design (compact look) • 2 x 4" Polyproprylene Woofer • 3/4" Titanium Dome Tweeter • 70V/100V/8 ohm Selectable • Transformer Taps 3.8W, 7.5W, 15W, 30W. • Frequency Range: 75-20,000 Hz. • Power: 150 Watts • Dimension: HxWxD (12 3/8″ x 5 3/4″ x 7 5/8″)

[Spec Sheet]

SB500T

Dual 5.25" Surface Mounting 2 way speaker - Black

Attractive elliptical design (compact look) • 2 x 5.25" Polyproprylene Woofer • 1" Titanium Dome Tweeter • 70V/100V/8 ohm Selectable • Transformer Taps 8.75W, 17.5W, 25W, 50W. • Frequency Range: 75-20,000 Hz. • Power: 250 Watts • Dimension: HxWxD (15.75 x 9.05″ x 7.08″).

[Spec Sheet]

Our Surface-Mount Indoor/Outdoor Speakers:

Surface-Mount Indoor/Outdoor Speakers, 70/100 Volt transformer, with 8 ohms bypass.

For use in Restaurants, Bars, Patios, Churches, Auditoriums, Boardrooms, Amusement Parks, Zoos, Nightclubs, Retail Stores, Airports, Train Stations, Factories and anywhere a commercial background or foreground music or paging is required. The trapezoid design makes it ideal for corner mounting. Weatherproof construction makes these cabinets ideal for indoor and outdoor use.

SB700T

SB700T

5" All-Weather Surface Speaker Assembly. Available in Black or White.

5" woofer with 0.5" Soft Dome Tweeter • 70V/25V/8 ohm Selectable • Transformer Taps 5W, 10W, 15W, 20W, 30W • Frequency Range: 45-22,000 Hz. • Power: 75W RMS, 150W Max • Dimension: HxWxD (9.88" x 7.13″ x 5.75″)

[Spec Sheet]

SB800T

6.5" All-Weather Surface Speaker Assembly. Available in Black or White.

6.5" woofer with 1" Soft Dome Tweeter • 70V/25V/8 ohm Selectable • Transformer Taps 5W, 10W, 20W, 30W, 40W • Frequency Range: 55-20,000 Hz. • Power: 80W RMS, 160W Max • Dimension: HxWxD (13.625" x 8.75″ x 7.625″)

[Spec Sheet]

SB900T

8" All-Weather Surface Speaker Assembly. Available in Black or White.

8" woofer with 1" Soft Dome Tweeter • 70V/25V/8 ohm Selectable • Transformer Taps 5W, 10W, 20W, 30W, 40W • Frequency Range: 55-20,000 Hz. • Power: 80W RMS, 160W Max • Dimension: HxWxD (13.625" x 8.75″ x 7.625″)

[Spec Sheet]

Our Horn Speaker:

8" High Impact Tan ABS Plastic Casing, Weatherproof, 16W Nominal with swivel bracket

For use in Warehouse, Factories, Train Station, Airport, Parks, Golf Course, Restaurant Patios, Amusement Parks, Zoos and anywhere a commercial background or foreground music or paging is required. Weatherproof construction makes these cabinets ideal for indoor and outdoor use.

QCS-H17T

8" Indoor/Outdoor Multi-Purpose Paging Horn w/ Built-in Dual Matching

Transformer 70V / 25V / 8 ohms

[Spec Sheet]

Our Projection Speaker:

6.5" Indoor/Outdoor Projection Speaker - White

For use in Warehouse, Factories, Train Station, Airport, Parks, Golf Course, Restaurant Patios, Amusement Parks, Zoos and anywhere a commercial background or foreground music or paging is required. Weatherproof construction makes these cabinets ideal for indoor and outdoor use.

PS-100T

6.5" Indoor/Outdoor Projection Speaker - White

Heavy duty Weatherproof ABS plastic housing • Frequency Range: 120-20,000 Hz • Sensitivity: 94 dB (1W/1m) • Built-in 70V Transformer • Transformer taps : 5W, 10W, 20W • Mounting bracket included • Weight 5 lbs.

[Spec Sheet]
